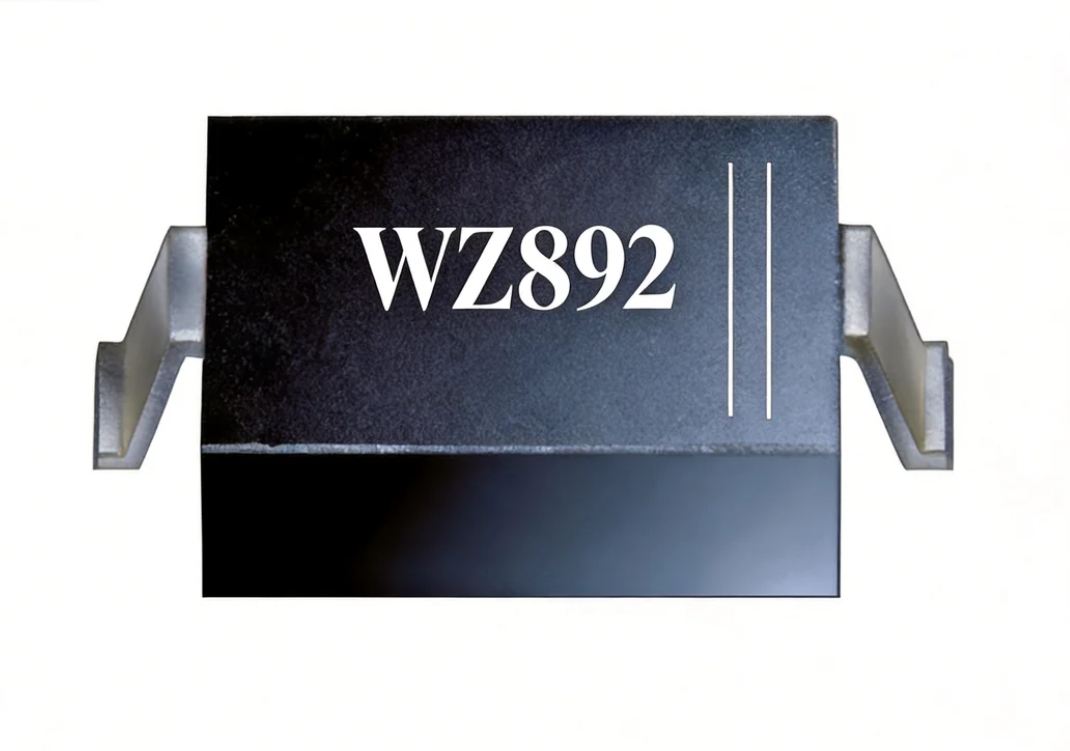

WZ892 SMD SOD523 Band Switch Diode 30V 100mA For IoT Wireless & High-Speed Signal Switch Circuits

### Product Overview

WZ892 is an ultra-miniature surface-mount band switching diode , specially designed for high-frequency RF signal switching circuit

Core Key Features

1. Premium High-Frequency Performance

• Max 2.5pF low junction capacitance (VR=1V, 1MHz), greatly reduce RF signal loss
• Ultra-low forward resistance ≤0.5Ω at IF=10mA, low conduction power consumption
• Minimal parasitic inductance, fast switching response for high-speed signal routing
• Reverse leakage current ≤20nA under VR=20V, extremely low static power waste

2. Stable Electrical Ratings

• Reverse Breakdown Voltage: 30V; Continuous Forward Current: 100mA
• Total Power Dissipation: 500mW (Ts=90℃)
• Forward Voltage Drop: 0.6~1.0V @ IF=10mA
• Junction & Storage Temperature: -65℃ ~ +150℃

3. Ultra-Compact SMD Packaging

• Super tiny SOD523 miniature surface mount package, ideal for slim & compact PCB layout
• Standard tape & reel packing, fully compatible with automatic pick-and-place machines
• RoHS compliant, consistent mass production quality

Typical Application Scenarios

✅ Bluetooth, IoT & RF wireless communication signal switching boards ✅ Infrared remote control receiving circuits ✅ High-speed signal detection & selection circuits ✅ Mini portable consumer electronics ✅ Handheld precision measuring & testing instruments ✅ Radio frequency signal routing modules

Our Supply Advantages

1. 100%  original WehZhou diodes, long-term sufficient stock
2. Free engineering samples for customer circuit performance testing
3. Complete official datasheet & one-on-one technical support
4. Flexible MOQ, competitive price for bulk wholesale orders
5. Standard tape reel packaging, fast global logistics delivery
