### Product Overview

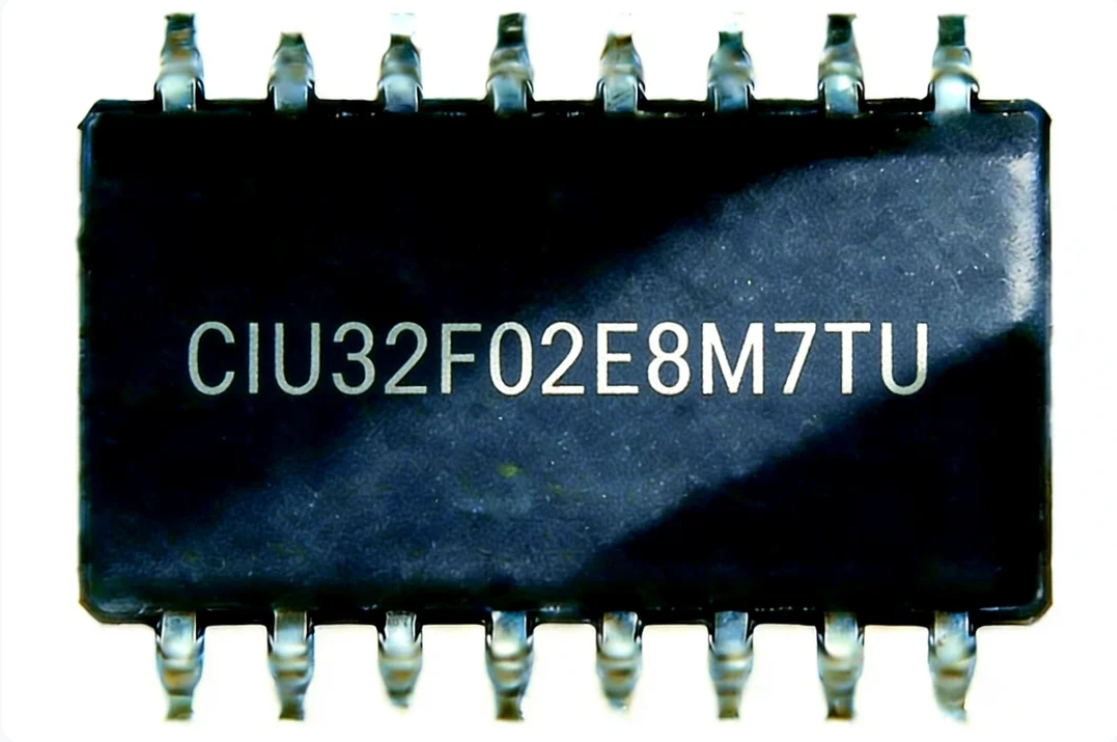

CIU32F032E8M7TU is a high cost-performance 32-bit general-purpose MCU launched by Huada Electronics (HED), built on ARM Cortex-M0+ core with maximum 48MHz operating frequency, packaged in compact SSOP24 form factor for cost-sensitive PCB designs. Equipped with 64KB Flash program memory and 6KB SRAM, it supports ultra-wide 1.8V~5.5V power input and industrial temperature range of -40℃ to +105℃. The chip carries up to 28 multifunctional GPIOs including 13 high-drive pins with 65mA sink current, integrated 8-channel dead-zone PWM, dual 24Mbps SPI, low-power LPUART wake-up port, 1Msps 12-bit SAR ADC, dual voltage comparators, RTC calendar, 3-channel DMA and hardware CRC16 module. It greatly reduces peripheral BOM cost and serves as a reliable domestic alternative to imported mainstream MCUs for mass consumer electronics production.
### Core Key Specifications
1. Core & Memory Architecture
- ARM Cortex-M0+ 32-bit CPU, single-cycle multiplication instruction, internal 48MHz RC oscillator
- Storage: 64KB Flash + 6KB SRAM, support IAP online firmware upgrade
- Multi low-power modes: Sleep / Stop / Deep Stop with SRAM retention
2. IO & Timing Resources
- Total 28 configurable GPIOs, all 5V tolerant; 13 high-current drive IOs up to 65mA for direct LED & relay driving
- 6 integrated multi-function timers: Advanced dead-zone PWM timer, general timer, low-power LPTIM, RTC, independent & window watchdog
- 8 PWM output channels, perfectly fit BLDC fan, water pump and light dimming control
- Multi external interrupt trigger function on all IO pins
3. Communication & Analog Peripherals
- Interfaces: 2×SPI , 2×UART, 1×LPUART (sleep wake-up), 1×1Mbps I2C, 3 independent DMA channels
- Analog Modules: 12-bit 1Msps SAR ADC with 9 external input channels, 2 low-power comparators, internal temperature sensor
4. Electrical & Packaging Parameters
- Operating voltage: 1.8V ~ 5.5V, compatible with both 3.3V and 5V circuit systems
- Operating temperature: -40℃ ~ +105℃ industrial wide temperature range
- Package: SSOP-24
### Typical Application Scenarios
✅ Mini small home appliance control boards: humidifier, mini fan, electric kettle, air purifier, range hood
✅ LED indicator panels, dimming lighting modules, small digital display equipment
✅ Portable power bank, lithium battery BMS & charging management boards
✅ Mini BLDC fan, micro water pump and small valve drive circuits
✅ Infrared receiving modules, handheld measuring instruments, smart sensing equipment
✅ Low-power thermostat, alarm and miniature industrial control modules
### Our Supply Advantages
1. 100% genuine original HED chips, long-term sufficient stock & stable lead time
2. Free engineering samples for customer circuit verification and performance testing
3. Complete datasheets and one-on-one professional FAE technical support
4. Flexible minimum order quantity, competitive unit price for bulk wholesale
